Efficient network infrastructure is the backbone of modern businesses, ensuring seamless communication, data flow, and operations. In January 2024, a comprehensive Wired Site Survey was conducted at a facility in Stockton, CA,USA to evaluate and optimize its network performance. This overview provides an in-depth look at the site's current network setup along with recommendations for improvement, ensuring enhanced reliability, scalability, and efficiency in the future.
The survey focused on the site’s wired and wireless infrastructure. The facility, a combination of office, production, and warehouse space, spans approximately 130,000 ft² with a ceiling height of 29 feet. Cisco Meraki Access Points (APs) were deployed for this survey to assess wireless coverage and identify areas for optimization.
Key components of the survey included the MDF (Main Distribution Frame) and IDF (Intermediate Distribution Frame) setups, cable installations, and the overall capacity of patch panels and network switches across different zones in the facility.
.webp?width=1204&height=605&name=rs=w_1280%20(1).webp)

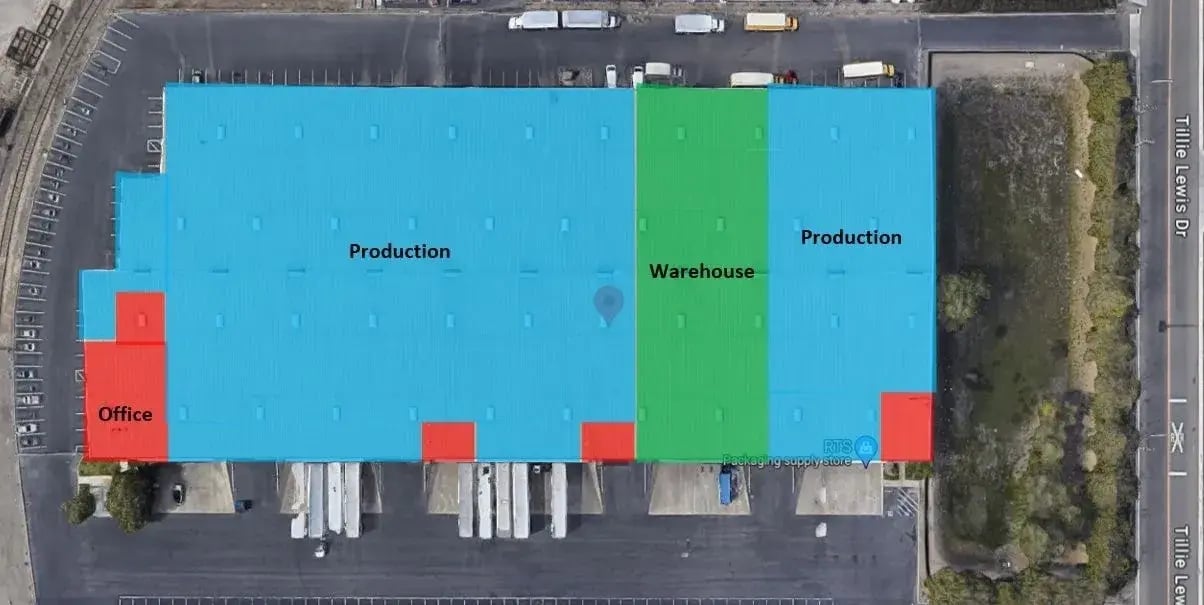

Site Map
Key Findings
MDF/IDF Infrastructure:
-
MDF has open ports, while IDF cabinets need deeper replacements to accommodate new hardware.
-
Upgrade from copper to OM4 MM Fiber between MDF and IDF1/IDF2 to boost speeds.
Access Point Placement:
-
Cisco Meraki APs installed across the facility, ensuring strong wireless coverage.
-
New Cat6A cables were run for each access point.

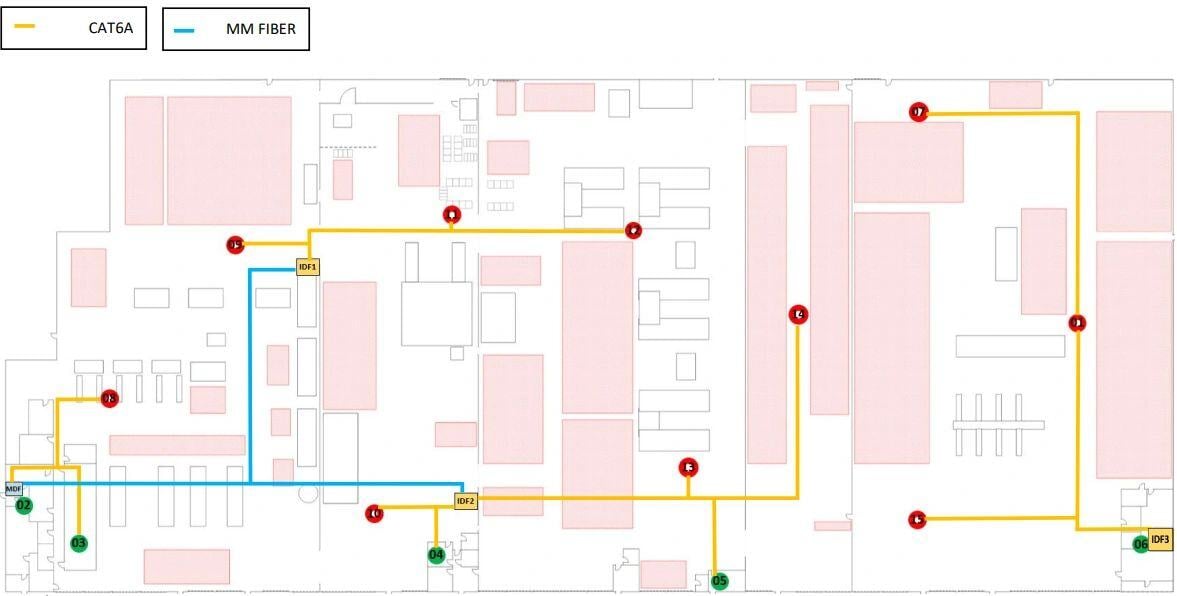

AP placement in Office Production and Warehouse
Power & UPS:
-
MDF power is adequate, but outlets in IDF cabinets should be relocated inside for better accessibility.
-
Existing UPS systems will be reused, with new PDUs installed where necessary.
Cable Installations:
-
Outdated Cat5 cables in IDF1 will be replaced with Cat6 for improved performance.
-
OM4 MM Fiber installation will future-proof the network for growing data demands.
Action Plan for Network Optimization
The following steps are recommended based on the survey findings:
-
Cabinet Replacement: Upgrade IDF cabinets to deeper models where necessary, especially for those housing critical network switches.
-
Fiber Upgrades: Transition from copper to OM4 MM Fiber for long-term reliability and faster data transmission between MDF and IDFs.
-
Power Adjustments: Ensure power outlets are properly located inside IDF cabinets, accompanied by the installation of necessary PDUs for better power management.
-
New Cable Installations: Replace outdated Cat5 cables with Cat6 and Cat6A, which will improve data transmission speeds and future-proof the infrastructure.
Final Thoughts
The manufacturing facility is on its way to having a robust, future-ready network infrastructure. By implementing the survey's recommendations, the company can ensure high-speed, reliable data communication across all areas of its operations. The transition to fiber-based networking and the strategic placement of access points will also ensure seamless wireless coverage for all employees.
