Upon the request of our client in Salt Lake City, UT, USA, a post-wireless site survey was conducted to address reported intermittent connect/disconnect and wireless coverage issues. The site was equipped with Cisco/2802i APs with internal antennas. During the survey, the RF Engineer identified wireless signal gaps and numerous Rogue Devices outside of the client's control. Detailed reports on individual AP issues were provided, including a remediation strategy. Power level issues with certain APs were also pinpointed, leading to a recommendation for RF profile optimization through the Meraki Dashboard.
The details of the surveys are below:
Survey Details
Site type : 9 ft tall office area
Area : 99,865 sq ft
Height : 9 ft.
Survey type : Post Wireless Design
Coverage : 2.4 GHz and 5GHz
| 5 GHz | 2.4 GHz | |
| Signal Strength | -65 dBm | -65 dBm |
| Secondary signal strength | -68 dBm | -68 dBm |
| Signal-to-noise ratio | 25 dB | 25 dB |
| Date rate | 12 Mbps | 12 Mbps |
Project Map

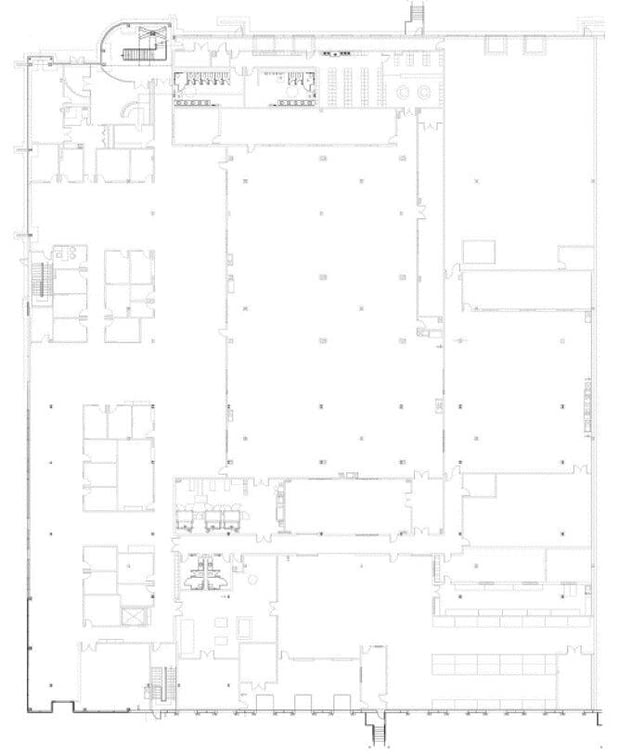

Site Map
Signal Strength on 5GHz

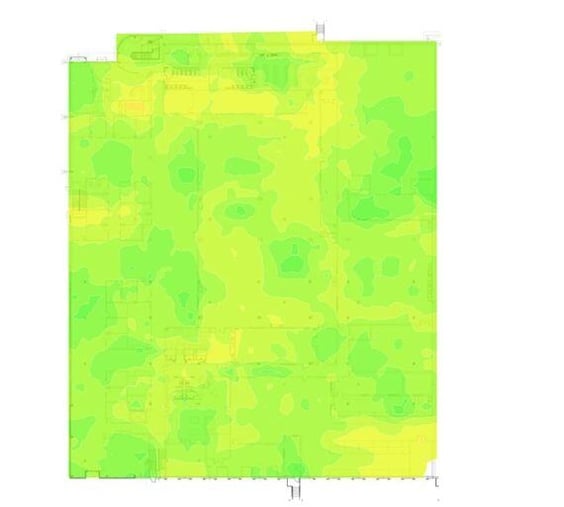

The image below shows the Signal Strength in 5 GHz for the site.
5GHz Signal Map using Ekahau Site Survey
Signal Strength on 2.4GHz

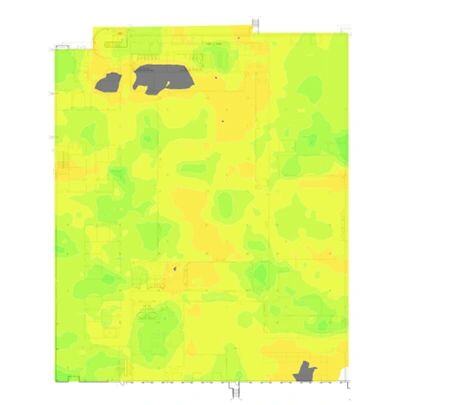

The image below shows the Signal Strength in 2.4 GHz for the site. Some holes were seen in 2.4 GHz as seen in the picture below.
2.4GHz Signal Map using Ekahau Site Survey
Access Points exhibiting the signal issue
The images below show the signal issue shown by a few APs onsite. These APs were transmission high power wireless due to channel interference and rouge access points.

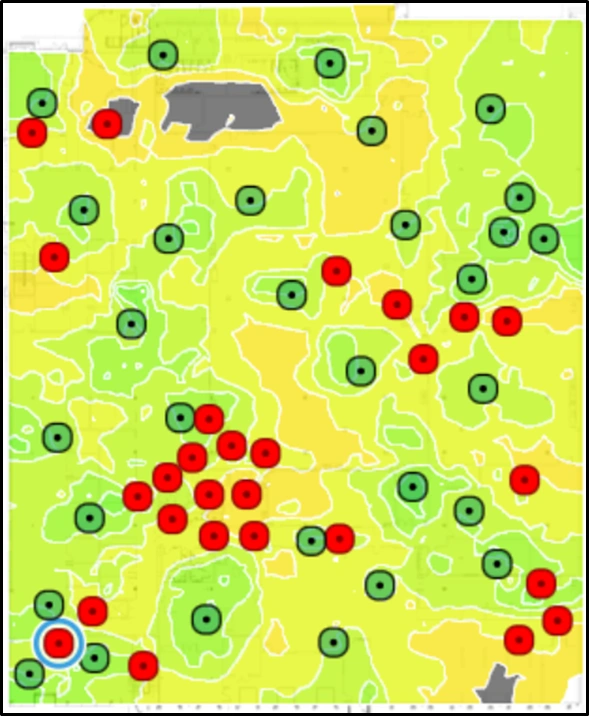

Numerous Rogue Devices were noticed broadcasting signal.

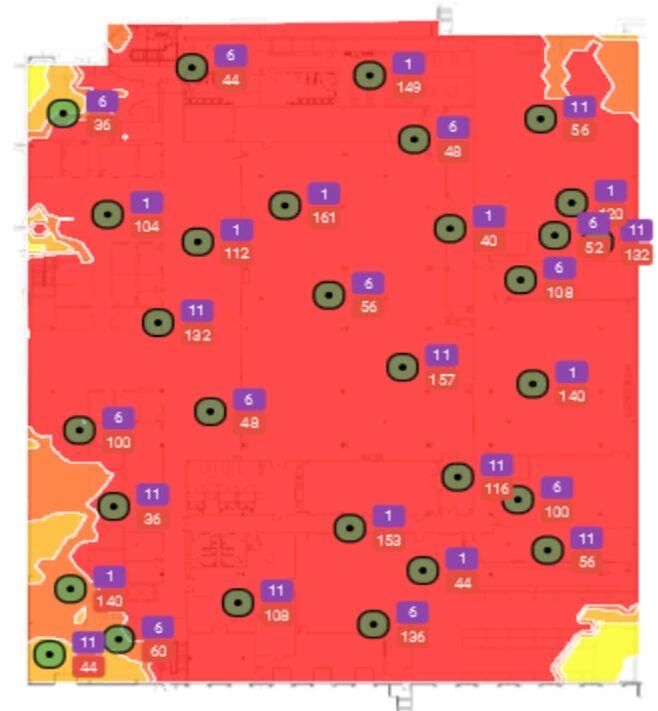

Extremely high Co and Adjacent Channel Interference in the entire site
