Fiber vs Copper Cabling: How to Choose the Right Foundation for Your Network

Choosing between fiber and copper cabling is one of the first major decisions in network infrastructure planning.

It is also one of the easiest decisions to frame incorrectly.

The question is usually asked as:

“Should we use fiber or copper?”

But in most commercial and enterprise environments, that is the wrong binary. A better question is:

“Where should fiber be used, and where should copper be used?”

Fiber and copper are not competing products that serve the exact same role. They are different cabling media used for different parts of the network. Fiber often supports backbone, distribution, long-distance, high-bandwidth, and network-room-to-network-room connections. Copper usually supports endpoint connectivity for workstations, wireless access points, IP cameras, phones, printers, access control systems, and other devices.

A strong structured cabling system often uses both. The goal is not to choose the most advanced cable everywhere. The goal is to build the right foundation based on distance, bandwidth, power requirements, building layout, environment, reliability needs, and future growth.

Quick Comparison: Fiber vs Copper at a Glance

The table below gives a practical starting point. Actual design decisions still depend on cable type, standards compliance, installation quality, testing, switch ports, optics, and project requirements.

The pattern is simple:

Copper is usually strongest near the user or device.

Fiber is usually strongest between network areas, buildings, floors, switches, and high-capacity infrastructure points.

What Copper Cabling Is Good At

Copper cabling is the familiar Ethernet cabling used throughout most commercial buildings. Cat5e, Cat6, and Cat6A are all copper twisted-pair cabling categories.

Copper is commonly used for:

• Workstations
• Desk phones
• Wireless access points
• IP security cameras
• Printers
• Access control devices
• Time clocks
• Point-of-sale systems
• Conference room equipment
• General office network drops

Its biggest advantage is practicality. Copper is widely supported, familiar to IT teams and installers, and cost-effective for endpoint connections. It also supports Power over Ethernet, or PoE, which allows a single Ethernet cable to carry both data and power to compatible devices.

PoE is one of the main reasons Copper remains essential in modern buildings. Wireless access points, cameras, VoIP phones, badge readers, intercoms, and smart building devices are often powered over copper Ethernet cabling.

Even when a building uses fiber between network rooms, copper is often still the final connection to the access point in the ceiling, the camera near the entrance, the phone on the desk, or the badge reader at the door.

Copper’s limitations are also important. Distance matters. Cable category matters. Interference matters. Installation quality matters. A Cat5e cable, a Cat6 cable, and a Cat6A cable should not be treated as interchangeable just because they all use copper.

That is why the next article in this series focuses specifically on Cat5e vs Cat6 vs Cat6A.

What Fiber Optic Cabling Is Good At

Fiber optic cabling transmits data using light rather than electrical signals. Instead of copper conductors, it uses thin strands of glass or plastic to carry optical signals.

Fiber is commonly used for:

• MDF-to-IDF backbone connections
• Floor-to-floor network links
• Building-to-building connections
• Campus environments
• Long-distance cable runs
• Data center connectivity
• High-bandwidth switch uplinks
• Core and distribution network links
• Environments with electromagnetic interference concerns

Fiber is especially valuable when distance, bandwidth, or interference becomes a design constraint.

For example, a large building may have a main distribution frame, or MDF, where core network equipment and service provider handoffs are located. From that MDF, fiber may run to intermediate distribution frames, or IDFs, on different floors, departments, warehouse zones, or building wings. From each IDF, copper can then serve nearby endpoint devices.

This keeps copper runs shorter and gives the network a stronger backbone. It also makes the infrastructure easier to organize, service, and expand.

Multimode vs Single-Mode Fiber

“Fiber” is not one single thing. In enterprise cabling, the next question is often whether the project needs multimode fiber or single-mode fiber.

Multimode Fiber

Multimode fiber is commonly used for shorter-distance high-speed links inside buildings, data centers, and enterprise facilities. Common multimode categories include OM3, OM4, and OM5.

Multimode fiber is often used for:

• MDF-to-IDF links inside buildings
• Data center connections
• Switch-to-switch links
• Short-to-medium enterprise backbone runs
• High-speed links within a facility

For many commercial environments, multimode fiber is a practical option when the distance is measured in tens or hundreds of meters.

Single-Mode Fiber

Single-mode fiber is used for longer-distance connections. It has a smaller core and is commonly selected for links that need more reach and long-term bandwidth flexibility.

Single-mode fiber is often used for:

• Building-to-building links
• Campus backbones
• Carrier handoffs
• Long-distance enterprise links
• Long-reach data center or network connections

Single-mode can support links measured in kilometers, depending on optics and link budget. That does not mean it is automatically the right choice for every project, but it should be considered when distance, future scalability, or external connectivity matters.

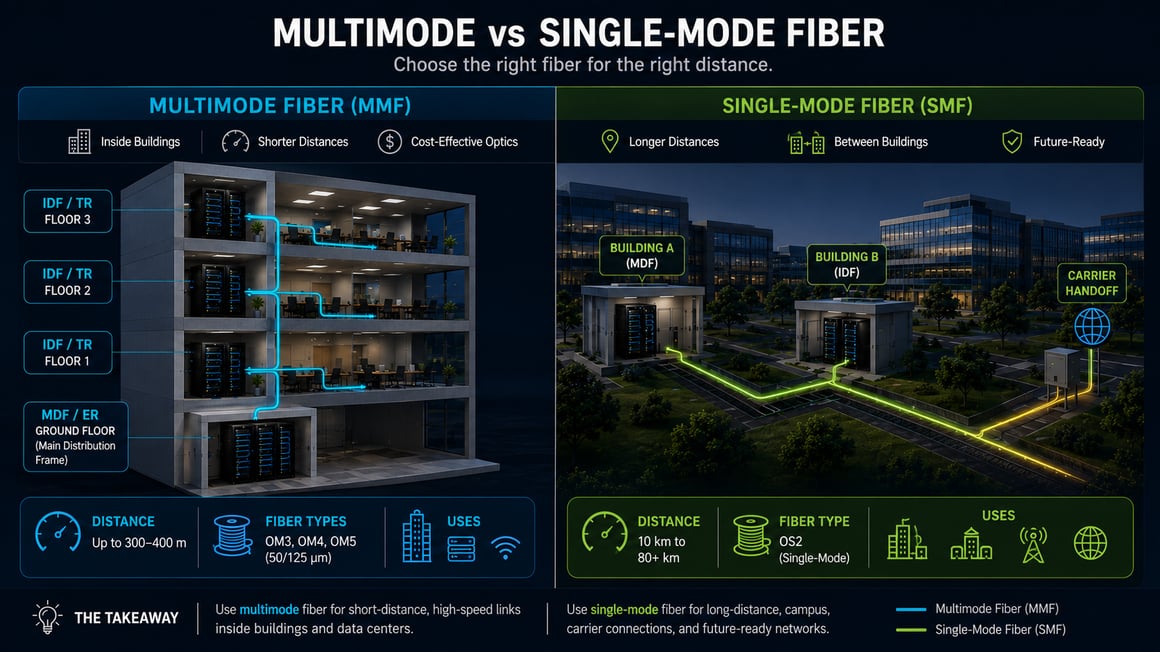

<img: side-by-side visual comparison of multimode fiber and single-mode fiber used in enterprise backbone cabling>

The practical lesson: multimode fiber often fits shorter enterprise and data center links, while single-mode fiber is often used for longer backbone, campus, and carrier-style connections.

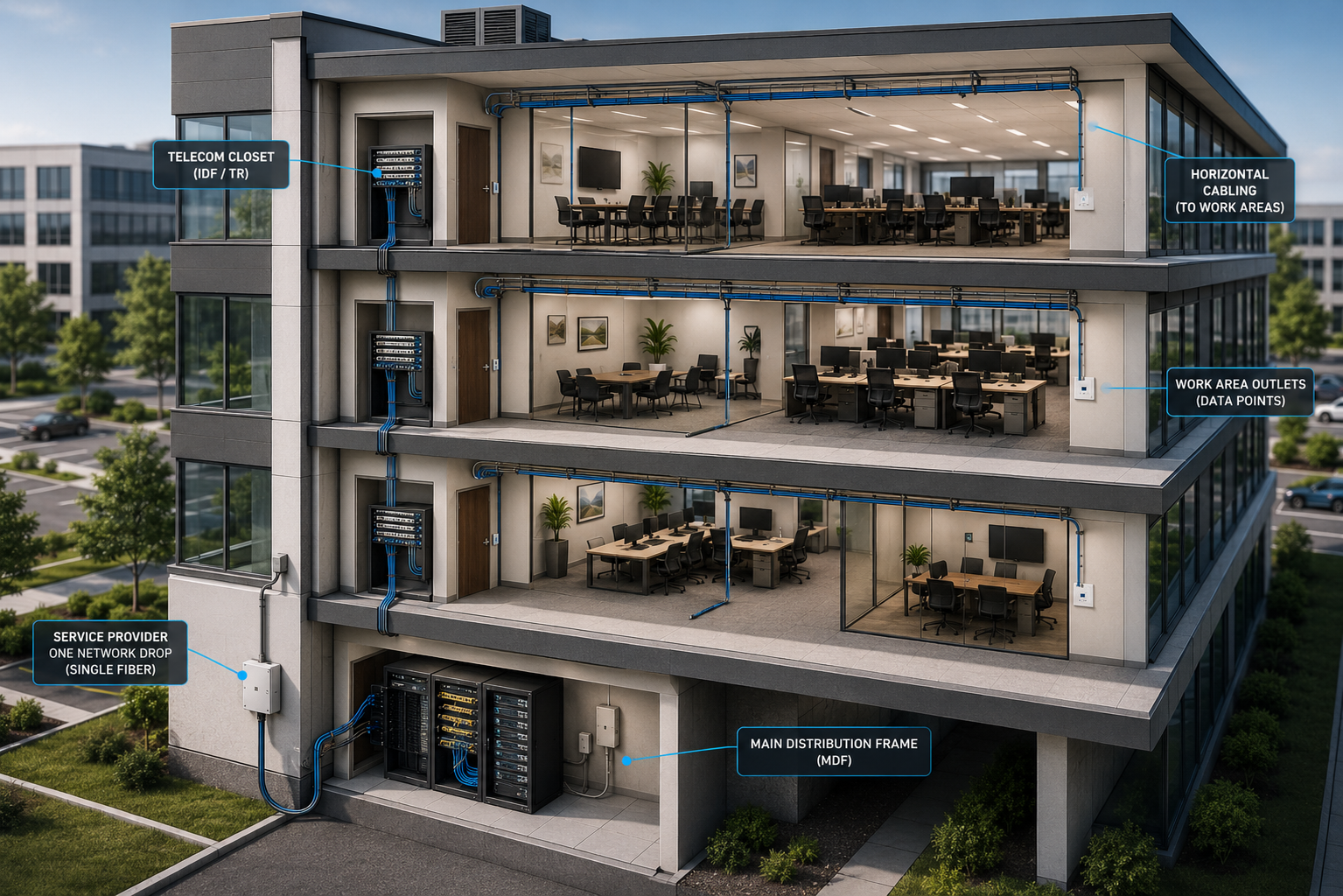

Enterprise Architecture: Fiber Backbone, Copper Access Layer

A common enterprise design uses fiber for backbone connections and copper for access-layer connections.

The backbone connects larger network areas together: MDF to IDF, building to building, floor to floor, switch to switch, or cabinet to cabinet.

The access layer connects actual devices: workstations, access points, phones, printers, IP cameras, badge readers, and conference room equipment.

For example:

• In a multi-floor office, fiber may connect the MDF to IDFs on each floor, while copper runs from each IDF to offices and conference rooms.

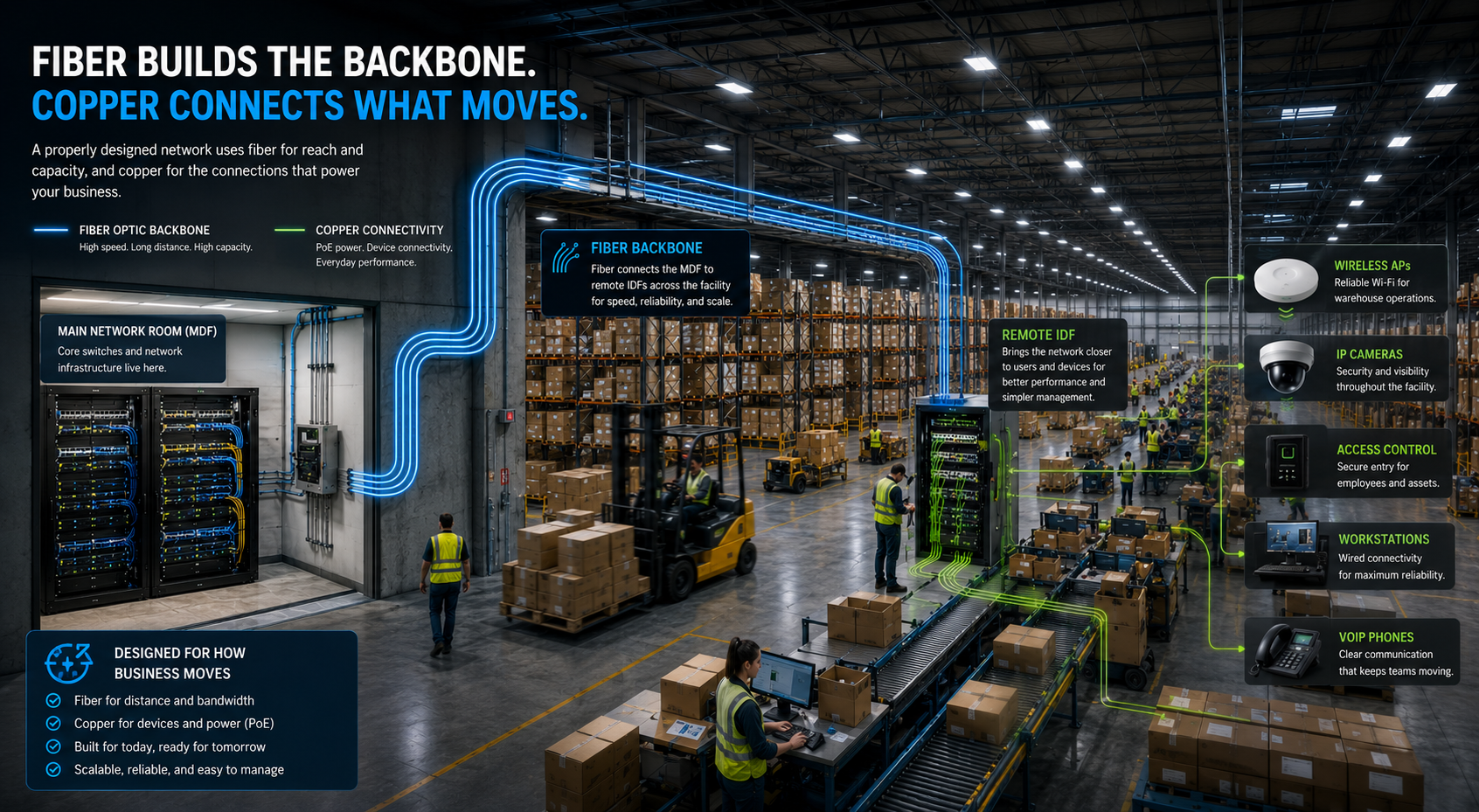

• In a warehouse, fiber may connect the main network room to a remote IDF near the warehouse floor, while copper runs from that IDF to access points, cameras, and access control devices.
• In a data center, fiber may support high-speed switch links, while copper may still be used for short equipment connections where appropriate.

This structure matters because it prevents one common mistake: trying to force every cable to behave like the same kind of infrastructure. Backbone links and endpoint drops have different jobs. Treating them differently leads to a cleaner and more scalable design.

Performance and Distance: The Numbers That Matter

General statements like “fiber is faster” and “copper is cheaper” are not enough for planning. Design decisions need numbers.

The following are practical planning examples, not universal guarantees. Performance depends on standards compliance, installation quality, patching, testing, switch ports, optics, and environmental conditions.

Copper Performance Examples

Cat5e is still present in many buildings, but it is not usually the preferred choice for new infrastructure where long-term performance matters.

Cat6 is widely used in commercial environments and is often a practical middle ground.

Cat6A is more appropriate when 10G over copper, high-performance access points, dense office layouts, or longer-term scalability are part of the plan.

Fiber Performance Examples

Fiber performance depends heavily on fiber type, optics, connector loss, splice loss, and link budget. Still, common planning examples help frame the choice.

Fiber is not unlimited. It still has design constraints. But compared with copper, it gives designers much more reach and bandwidth flexibility for backbone and long-distance links.

Modern Bandwidth Examples

Modern networks do not run at one speed everywhere.

Different parts of the infrastructure may need different performance levels:

• 1G is still common for many workstations, printers, phones, and basic endpoint devices.
• 2.5G and 5G are increasingly relevant for newer wireless access points over copper.
• 10G is common for switch uplinks, high-performance workstations, servers, storage devices, and aggregation links.
• 25G, 40G, and 100G are more common in data centers, core networks, distribution layers, and high-density environments.

A workstation may not need fiber. A PoE access point may be best served by copper. But the IDF feeding dozens of workstations, APs, phones, and cameras may need a fiber uplink back to the MDF.

That is the design distinction that matters.

Reliability and Redundancy Considerations

Enterprise cabling design is not only about speed and distance. It is also about uptime.

A single fiber uplink from an IDF to the MDF may be enough for a small or low-risk environment. But in larger or more critical networks, that single uplink can become a single point of failure.

Reliability-focused designs may include:

• Redundant fiber uplinks between network rooms
• Diverse backbone paths through different routes or pathways
• Separate physical routes for primary and secondary links
• Multiple IDFs serving different areas of a facility
• Proper labeling and documentation for faster troubleshooting
• Spare fiber strands for future growth or emergency restoration

Diverse pathways are especially important. Two fiber links do not provide true physical redundancy if they run through the same conduit, ceiling pathway, or vulnerable route. A single construction accident, water event, fire, or pathway failure could damage both at once.

For businesses that depend heavily on uptime, cabling design should support business continuity. That does not mean every building needs full redundancy everywhere. It means critical areas should be identified early, and the cabling infrastructure should match the operational risk.

Cost Analysis: What Are You Actually Paying For?

The cost difference between fiber and copper is not just cable cost.

A real comparison should include:

• Cable and material cost
• Labor and pathway cost
• Termination and testing cost
• Switch ports and transceivers
• PoE power requirements
• Rework risk
• Downtime risk
• Future upgrade cost

Copper is often more economical for endpoint drops. Jacks, patch panels, RJ45 ports, and patch cords are familiar and widely available.

Fiber may cost more in termination, testing, optics, and equipment. But for backbone and long-distance links, fiber may reduce future limitations and avoid expensive redesign later.

The cheapest installation is not always the lowest-cost infrastructure. If a building is cabled only for today’s needs, future upgrades may require opening ceilings, rerouting pathways, replacing cable, retesting links, and disrupting operations.

The right question is not:

“What is the cheapest cable?”

The better question is:

“What cabling design gives this organization the best long-term fit?”

Practical Decision Framework

Use these questions to decide where fiber and copper belong.

1. What is being connected?

Endpoint device? Copper is usually practical.

Network rooms, switches, buildings, floors, or high-capacity systems? Fiber may be more appropriate.

2. How far does the connection need to go?

If the run is within copper limits, copper may work well.

If the run is long, crosses buildings, or stretches across a large facility, fiber may be required or strongly preferred.

3. Is PoE required?

If the device needs Power over Ethernet, copper is usually the better final connection.

This matters for APs, cameras, phones, badge readers, and many smart building devices.

4. How much bandwidth is needed?

Basic endpoints, wireless APs, camera systems, switch uplinks, servers, and data center connections all have different requirements.

The more traffic a link aggregates, the more likely fiber becomes part of the design.

5. Is the environment electrically noisy?

If cabling pathways run near motors, machinery, electrical gear, or industrial systems, the design may require fiber, shielded copper, pathway separation, or grounding considerations.

6. How critical is uptime?

If a link supports a critical area, redundant fiber uplinks or diverse backbone paths may be worth considering.

Reliability should be designed before there is an outage, not after.

Common Mistakes When Choosing Fiber or Copper

Mistake 1: Treating Fiber and Copper as an Either/Or Decision

Most enterprise environments need both. Fiber and copper serve different parts of the system.

Mistake 2: Using Copper Everywhere Because It Is Familiar

Copper is excellent for endpoint connectivity, but it is not always the right answer for backbone, long-distance, or high-capacity links.

Mistake 3: Using Fiber Everywhere Because It Sounds More Advanced

Fiber is powerful, but not every endpoint needs fiber. If a device needs PoE, copper may be the better final connection.

Mistake 4: Ignoring MDF and IDF Placement

Poorly placed network rooms create long cable runs, messy pathways, difficult maintenance, and unnecessary limitations.

Mistake 5: Forgetting About Redundancy

A network can have fast links and still be fragile. Critical areas may need redundant uplinks, spare fiber strands, or diverse pathways.

Mistake 6: Choosing Based Only on Price

The cheapest cabling decision can become expensive if it creates rework, downtime, or failed upgrades.

So, Which One Do You Actually Need?

For most business and enterprise environments, the answer is not simply fiber or copper.

The stronger answer is:

Use fiber where the network needs distance, backbone capacity, high-speed uplinks, redundancy, or long-term scalability.

Use copper where the network needs practical endpoint connectivity, PoE, standard Ethernet drops, and cost-effective device connections.

A small office may rely mostly on copper. A multi-floor building may use fiber between network rooms and copper to endpoint devices. A warehouse may use fiber to reach remote IDFs and copper from those IDFs to cameras, APs, and access control systems. A data center may use fiber heavily for high-speed paths while still using copper where short equipment connections make sense.

The best cabling foundation is not the one with the most impressive specification. It is the one that fits the building, devices, distances, bandwidth requirements, power needs, uptime expectations, and future growth plan.

OrionUS works with both fiber and copper cabling because most real-world network infrastructure needs both.

Whether the project involves fiber backbone cabling between MDFs and IDFs, copper drops for access points and cameras, redundant uplinks for critical areas, or a complete structured cabling buildout, the goal is the same: create a network foundation that fits the building, supports the devices, and gives the organization room to grow.

Continue Reading in This Series

Next article:

Cat5e vs Cat6 vs Cat6A: What Is Actually Worth Paying For?

Once copper cabling makes sense for part of your network, the next decision is which copper category to use. Cat5e, Cat6, and Cat6A each have different performance levels, costs, distance considerations, and future-readiness tradeoffs.
