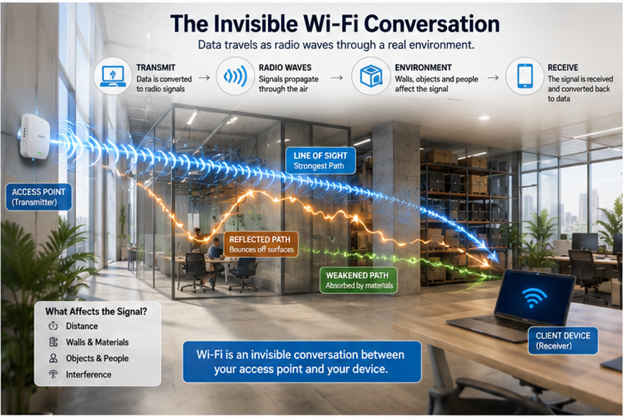

Wi-Fi feels simple because most of its complexity is invisible. An access point is installed, a laptop, phone, scanner, or handheld connects, and data starts moving. But between those devices is a radio-frequency conversation taking place inside a physical environment.

The access point creates the signal (RF signal), the building changes it, and the client receives whatever reaches it. The conditions at this receiver help determine whether the connection is fast, slow, stable, inconsistent, or unusable. Wi-Fi is radio, and radio follows the laws of physics. Once that idea clicks, many Wi-Fi problems stop looking random.

This is the foundation of Wireless networking.

1.  Wi-Fi Starts with Radio

Wi-Fi carries information using electromagnetic energy. A wireless radio takes data, represents that data through changes in an RF signal, and sends that energy through an antenna into the surrounding environment. Another radio receives the signal and attempts to recover the information encoded within it.

At the simplest level, three things are involved:

frequency, waves, and radios capable of transmitting and receiving them.

Before concepts such as channels, interference, signal strength, or wireless surveys make much sense, it helps to understand what that signal actually is.

Frequency: Where the Radio Operates

Frequency describes how many times an electromagnetic wave cycles every second. A cycle is one full repetition of a wave’s pattern, from a starting point until it returns to that same point again.

• One hertz (Hz) means one cycle per second.
• One megahertz (MHz) means one million cycles per second.
• One gigahertz (GHz) means one billion.

Modern Wi-Fi primarily operates within the 2.4 GHz, 5 GHz, and 6 GHz bands. Current IEEE Wi-Fi standards support operation across all three ranges. These are not simply different numbers printed on an access point specification sheet. They represent different portions of the RF spectrum available for wireless communication.

Frequency is also directly related to another important characteristic.

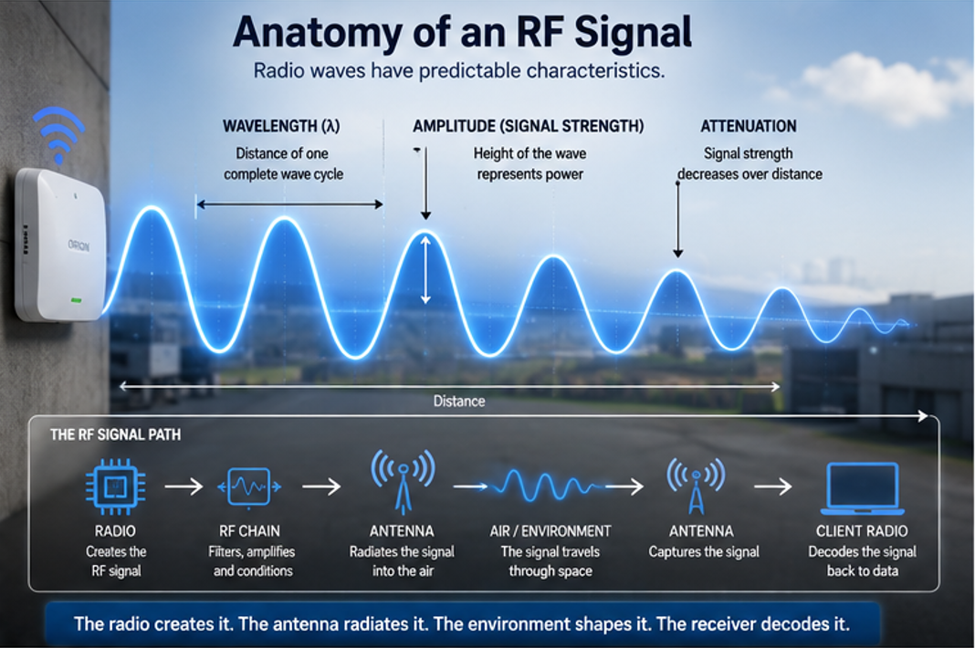

Wavelength: The Physical Length of a Cycle

Every frequency has a corresponding wavelength, which is the physical distance of one complete wave cycle. As frequency increases, wavelength becomes shorter. As frequency decreases, wavelength becomes longer.

Why does that matter? Because RF energy does not travel through an empty mathematical diagram. It encounters walls, doors, glass, shelving, machinery, people, inventory, ceilings, floors, and countless other physical objects.

The relationship between a radio wave and those objects helps influence how energy propagates through the environment. Different Wi-Fi bands therefore are not simply interchangeable versions of the same thing. They provide different amounts of available spectrum and introduce different propagation and design considerations.

In practical deployments, engineers may use 2.4, 5, and 6 GHz differently based on client support, available spectrum, coverage requirements, capacity, and the physical environment.

Changing bands changes more than speed. It changes part of the RF design problem.

RF energy does not remain at the same strength after leaving the transmitter. As distance increases, the amount of power reaching the receiver decreases. Walls, equipment, shelving, inventory, and other materials can cause additional signal loss.

That reduction in signal strength is called attenuation. This gives us one of the most important distinctions in wireless design.

It is not enough to ask:

How strongly can the access point transmit?

The more useful question is:

What signal conditions exist where the client is actually receiving?

Wi-Fi is also a two-way conversation. The access point must reach the client, but the client must also communicate back. A powerful AP cannot turn a lower-powered handheld, phone, or IoT device into an equally powerful transmitter.

Reliable wireless communication depends on the complete RF path in both directions.

The Radio Transmits. The Antenna Radiates.

An antenna is often described as the thing that “sends Wi-Fi.” That is useful shorthand, but technically incomplete. The radio creates and processes the RF signal. The antenna provides the interface through which that energy is radiated into the environment and received from it.

The broader RF chain can also include amplifiers, connectors, cabling, filtering, and other components.

Why does that distinction matter?

• Wireless Performance is the result of an entire system
• Transmit power matters
• Antenna characteristics matter
• Receiver capability matters
• Client capability matters
• And everything between the two devices matters.

Looking only at the access point model therefore tells us surprisingly little about how that AP will perform inside a real building.

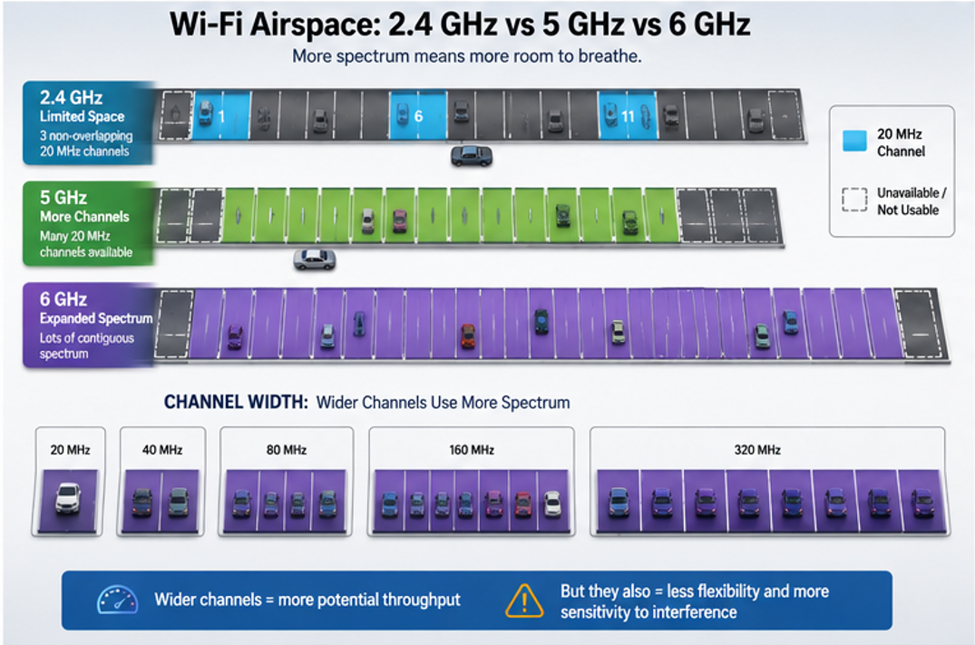

2. Wi-Fi Has Limited Airspace

Once a radio has a frequency range to operate in, it still cannot transmit anywhere it wants. Wi-Fi divides available spectrum into channels.

Three related terms are important:

• A frequency band is a larger portion of RF spectrum.
• A channel is a specific portion of that band used for communication.
• Channel width describes how much spectrum a channel occupies.

Think of it like a highway. The band is the overall roadway, channels divide it into usable paths, and channel width determines how much space each path takes.

Why 2.4 GHz Gets Crowded Quickly

The 2.4 GHz band has limited usable spectrum, and many channels overlap. In North America, channels 1, 6, and 11 are commonly used with 20 MHz widths because they do not overlap.

With only a few clean channels available, nearby APs can quickly begin competing for airtime.

5 GHz Gives Designers More Options

The 5 GHz band provides more usable spectrum and more channels for reuse. This gives engineers greater flexibility in larger or denser environments.

• More channels allow better separation between nearby APs.
• Some 5 GHz channels use Dynamic Frequency Selection (DFS), which requires Wi-Fi devices to avoid channels when radar activity is detected.
• DFS can add capacity, but it also introduces client and regulatory considerations.

6 GHz Expands the Available Spectrum

The 6 GHz band adds even more spectrum for compatible Wi-Fi devices. This creates more room for channel reuse and wider channels. More spectrum gives engineers greater flexibility, but it does not replace good RF design.

Wider Channels: More Speed, Less Reuse

Wi-Fi commonly uses 20, 40, 80, and 160 MHz channels, while Wi-Fi 7 supports up to 320 MHz. Wider channels can increase throughput, but they also consume more spectrum.

• Wider channels: more potential throughput.
• Narrower channels: more channels available for reuse.
• Dense environments: narrower channels often provide better overall efficiency.

The goal is not to use the widest channel possible. It is to use the right channel width for the environment.

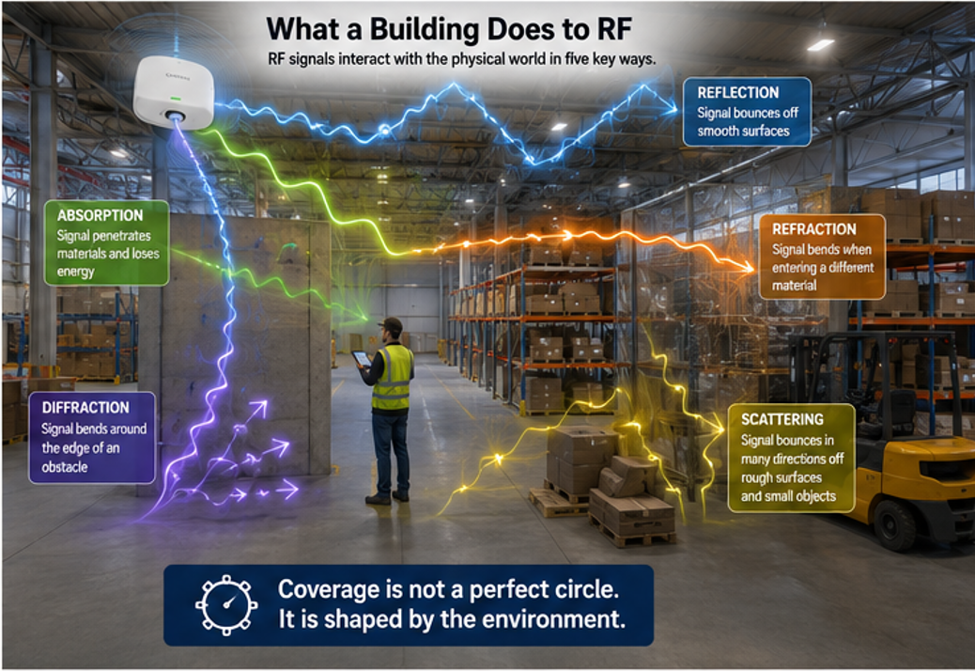

3. How the Physical Environment Affects Wi-Fi

Wireless signals do not travel through empty space. They interact with walls, glass, furniture, people, shelving, machinery, and other objects throughout the environment.

The same access point can behave very differently in an office than in a warehouse because the surrounding materials and layout change how RF energy propagates.

The main behaviors to understand are:

• Reflection: signals bounce off surfaces, especially metal.
• Absorption: materials remove some RF energy, weakening the signal.
• Refraction, diffraction, and scattering: signals can change direction, bend around obstacles, or spread after interacting with objects.

These effects create stronger and weaker coverage areas, signal shadows, and multiple propagation paths.

A wall on a floorplan is not just a line. Its construction matters.

Multipath: One Signal, Multiple Paths

A signal may reach a client directly while other copies arrive after reflecting from walls, shelving, or machinery. Because those paths have different lengths, the signals can arrive at slightly different times and phases.

This is called multipath propagation.

Multipath can weaken or reinforce parts of a signal. Modern Wi-Fi can also use it through MIMO (Multiple-Input Multiple-Output), which uses multiple antennas and radio chains to support multiple spatial streams.

The physical environment changes the radio path between the AP and the client.

4. Measuring an Invisible Signal

By the time an RF signal reaches a client, distance, materials, and propagation effects may have changes it significantly. Wireless engineers use several measurements to describe what arrives at the receiver:

•  mW and dBm — power
•  RSSI — received signal strength indicator
•  Noise floor and SNR(Signal-to-Noise) — signal quality relative to background RF energy

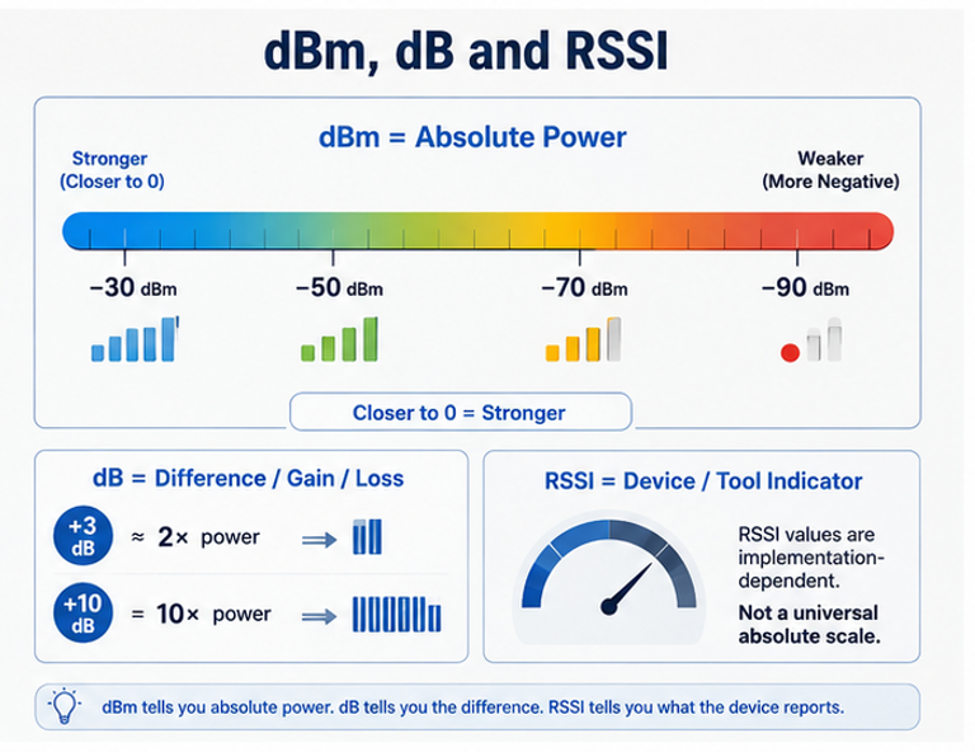

mW and dBm

A watt measures power. Wi-Fi radios operate at much smaller levels, so transmit power is often expressed in milliwatts (mW). As received Wi-Fi signals can be extremely weak, dBm provides a more practical scale.

Some useful reference points:

• 0 dBm = 1 mW
• 10 dBm = 10 mW
• 20 dBm = 100 mW
• 30 dBm = 1 watt

Received Wi-Fi signals are usually below 0 dBm, so negative values are normal. -50 dBm is stronger than -70 dBm. The closer the value is to zero, the stronger the received signal.

dB vs. dBm

The terms look similar but serve different purposes. dBm tells you the power level. dB tells you how much it changed.

• dBm represents an absolute power level
• dB represents a difference, gain or loss.

A useful shortcut:

• +3 dB ≈ twice the power
• -3 dBm ≈ half the power
• +10 dB ≈ ten times the power

RSSI

RSSI stands for Received Signal Strength Indicator.

RSSI is implementation-dependent, so values are not always directly comparable across different clients, chipsets, or platforms. When a survey tool reports signal strength in dBm, however, it is reporting an absolute received power level.

5. Strong Signal Is Not Necessarily Good Signal

A client receiving an AP at -60 dBm may appear to have a strong connection, but signal strength alone does not tell the full story. The receiver also has to distinguish that signal from background RF energy.

Noise Floor and SNR

The noise floor is the baseline level of background RF energy seen by the receiver. The greater the separation between the desired signal and that background, the easier the signal is to distinguish.

That separation is called Signal-to-Noise Ratio (SNR). For example:

• Signal:  -55 dBm
• Noise floor: -90 dBm
• SNR: 35 dB

Signal and noise are measured in dBm, while SNR is measured in dB because it represents the difference between them.

Signal strength tells us how strongly the signal arrived. SNR tells us how clearly it can be heard.

6. When Signals Compete

Other RF energy in the environment does not automatically mean interference. What matters is whether that energy affects the receiver while it is trying to decode the desired signal. Interference depends on factors such as signal strength, frequency, timing, and how long the unwanted source is active.

Interference vs. Contention

These are different problems:

• Interference: unwanted RF energy makes a transmission harder to decode.

• Contention: legitimate Wi-Fi devices compete for the same airtime.
•  Duty cycle: describes how much of the time a source is transmitting.

Because Wi-Fi is a shared medium, a device can have strong signal and still perform poorly when too many devices are competing for airtime.

Coverage asks whether devices can communicate. Capacity asks whether the network can support the demand.

7. Why Better RF Enables Faster Wi-Fi

Wi-Fi can transmit more information when RF conditions are good. When conditions worsen, it must use more conservative modulation and coding to maintain a reliable connection. Wi-Fi 7, for example, supports 4096-QAM, which can represent more information in each transmission when conditions allow.

The more information packed into a signal, the more accurately the receiver must be able to distinguish it.

Newer Wi-Fi technology raises the performance ceiling, but RF conditions determine how much of that capability can actually be used.

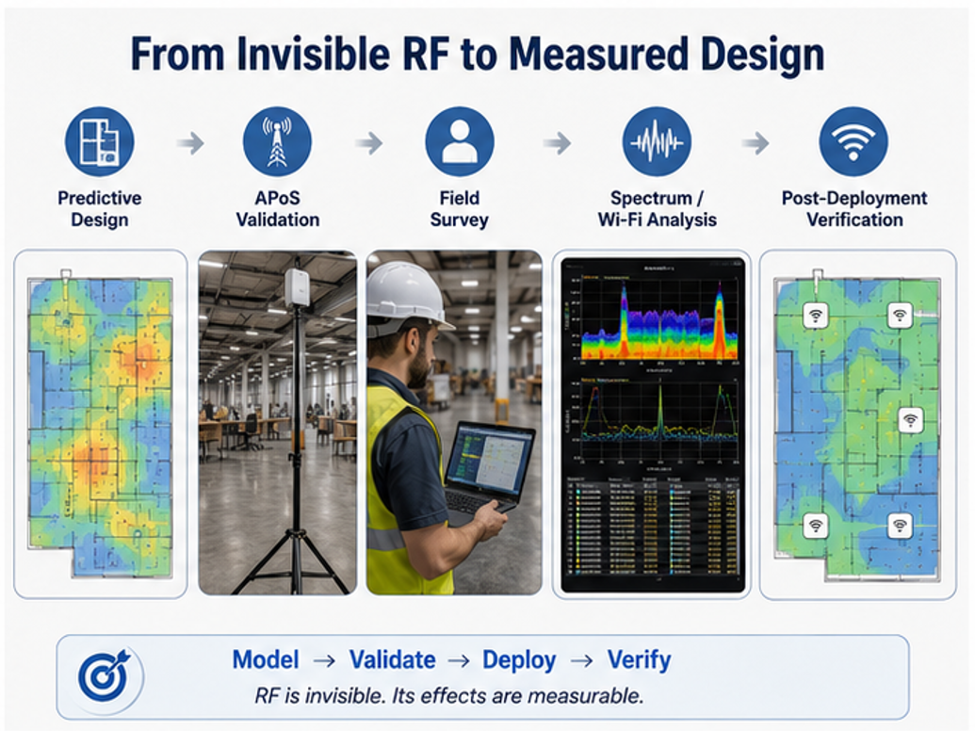

8. From RF Theory to Wireless Design

RF is invisible, but it can be measured. Different tools reveal different parts of the wireless environment:

•  Wi-Fi analysis tools show APs, channels, and signal levels.

•  Protocol analyzers examine communication between Wi-Fi devices.
•  Spectrum analyzers show RF energy whether it comes from Wi-Fi or another source.

 Measurement replaces assumptions with evidence.

Why Wireless Design Happens Before Installation

 Wireless design is more than placing APs evenly across a floorplan. Engineers must account for:

• channels, channel widths, and available spectrum
•  materials, propagation, and device locations
•  signal strength, SNR, interference, contention, and capacity

Wireless problems may appear unpredictable, but they are usually the result of measurable conditions: propagation, signal strength, noise, channel use, interference, contention, client behavior, and demand. That is why wireless projects may include predictive design, site surveys, AP-on-a-Stick testing, spectrum analysis, and post-deployment validation.

 At OrionUS, that process means defining requirements, modeling the RF environment, validating the design, and verifying the finished network. Explore our wireless resources for more on predictive RF design, wireless site surveys, AP placement, AP-on-a-Stick validation, heatmaps, deployment planning, and post-installation verification.

RF is invisible. Its effects are measurable. Good wireless design connects the two.
